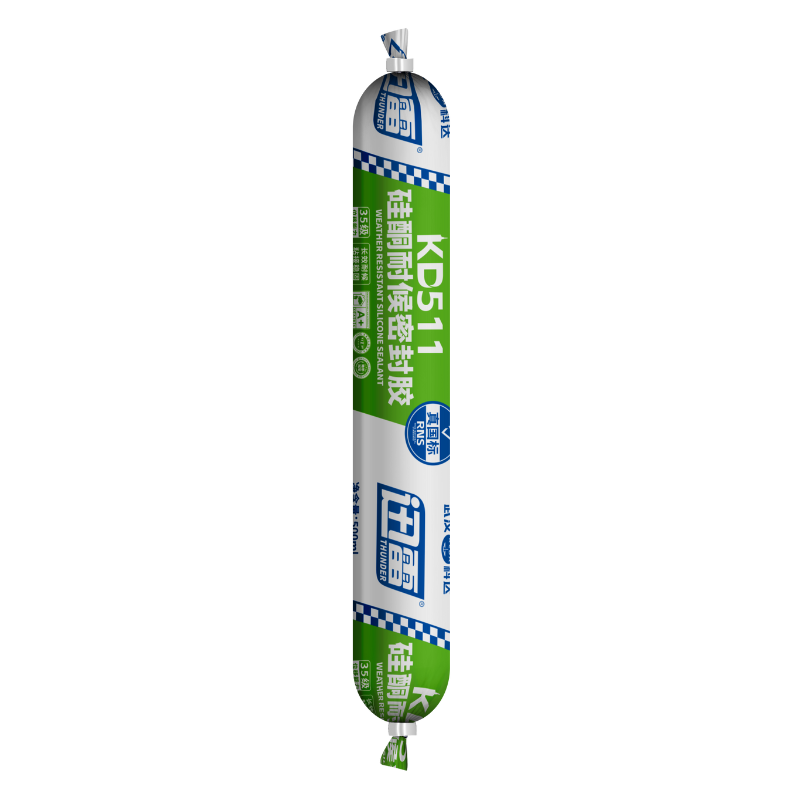

KD511 High-Performance Silicone Weatherproofing Sealant_300ml

KEDA KD511 High-Performance Silicone Weatherproofing Sealant

KD511 is a single-component, neutral cure, room temperature vulcanizing (RTV) silicone sealant with high modulus and high movement capability. Specifically engineered for weatherproofing and joint sealing in high-rise glass curtain wall applications, it delivers exceptional weather resistance. The product has undergone rigorous accelerated aging tests with no significant deterioration in physical and chemical properties, demonstrating excellent long-term performance retention. Part of the Swift Series, it offers premium high-rise performance at competitive pricing.

Single-component System: Neutral cure at room temperature, ready to use
High Modulus: Superior structural stability for demanding high-rise applications
Superior Mechanical Properties: Excellent elasticity, elongation, and tensile strength
Exceptional Weather Resistance: Outstanding resistance to harsh climatic conditions and temperature extremes
Proven Durability: Passed various accelerated aging tests without performance degradation
Universal Adhesion: Excellent bonding to most building materials
High Movement Capability: Accommodates building movement and thermal expansion
Cost-Effective: Premium performance at competitive Swift Series pricing

Applocation

Weather sealing for high-rise glass curtain wall systems
Weather sealing for metal aluminum panels and ceramic curtain walls
Joint sealing for skylight and roofing constructions
Perimeter sealing for commercial high-rise buildings
Expansion joints in tall structures
Various other demanding weatherproofing applications

Package

Cartridge Size: 300ml, 590ml
Available Colors: Clear/Transparent, White, Black, Gray, Customized
Packaging Type: Hard tube, Sausage pack/cartridge
Shelf Life: 12 months from production date (in sealed original container)
Storage Conditions: Store in cool, dry place below 27°C

Step 1: Surface Preparation

Ensure all substrates are clean, dry, and free from contamination, dust, oil, grease, and loose particles
For porous substrates, ensure they are sufficiently dry
Remove any old sealant, paint, or coatings that may interfere with adhesion

Step 2: Joint Design

Use appropriate backer rod or bond breaker tape for joints deeper than 12mm
Recommended joint width-to-depth ratio: 2:1
Ensure three-sided adhesion is avoided

Step 3: Application

Cut the cartridge nozzle at a 45° angle to desired bead size
Load cartridge into a professional caulking gun or power applicator
Apply sealant evenly and continuously into the joint
Ensure complete joint filling without air pockets

Step 4: Tooling & Finishing

Tool the sealant surface within 10-15 minutes of application before skin formation
Use a spatula or smoothing tool moistened with soapy water
Remove masking tape immediately after tooling if used

Step 5: Curing

Allow adequate curing time: typically 7-21 days for full cure depending on joint depth
Protect from rain and moisture during initial 24 hours
Avoid stress or movement during cure period

Additional information

Product Type	Single-component neutral silicone sealant
Product Series	Swift Series – High-Rise Grade
Modulus	High
Cure System	Moisture cure (neutral)
Skin Formation Time	10-20 minutes (23°C, 50% RH)
Tack-Free Time	20-30 minutes (23°C, 50% RH)
Curing Speed	3-5 mm/24 hours
Application Temperature	+5°C to +40°C
Service Temperature	-50°C to +150°C
Movement Capability	±25%
Hardness (Shore A)	30-45
Tensile Strength	≥1.0 MPa
Elongation at Break	≥400%
Tensile Modulus at 100%	0.6-0.9 MPa

Limitation

NOT for structural glazing applications (use Swift KD621 structural sealant instead)
NOT suitable for materials that exude oils, plasticizers, or solvents
NOT recommended for poorly ventilated or confined spaces
NOT suitable for surfaces in direct contact with food or potable water
NOT recommended for continuous water immersion or permanently submerged applications
DO NOT apply when substrate temperature is below +4°C or above +50°C
NOT paintable (silicone does not accept paint or coatings)
NOT compatible with bituminous surfaces or materials containing copper

Tips

Size Selection Guide:

590ml: Best for large-scale high-rise projects, commercial curtain wall installations, professional contractors
300ml: Ideal for small high-rise projects, repairs, maintenance work, touch-ups

For Best Results:

This product is specifically formulated for high-rise building applications
Conduct adhesion tests on actual substrates before full-scale application
For critical high-rise projects, follow building codes and consult with structural engineers
High modulus provides superior wind load resistance for tall buildings
Document all accelerated aging test results for project specifications
Maintain quality control records for high-rise installations
In cold weather, store sealant at room temperature before use

Swift Series Value Proposition for High-Rise:

Premium high-rise performance at competitive pricing
Same technical specifications as premium brands for tall buildings
Proven through accelerated aging tests
Excellent for large-scale projects where cost efficiency matters
Ideal for contractors seeking quality without premium brand pricing
Reliable performance for demanding high-rise applications

Quality Assurance:

Perform regular visual inspections during application
Verify proper adhesion and continuous bead application
Monitor curing conditions (temperature, humidity)
Document installation for building maintenance records
Maintain detailed quality control records for high-rise projects

High-Rise Specific Considerations:

Wind load resistance: High modulus provides superior structural stability
Thermal cycling: Maintains adhesion through extreme temperature variations
UV exposure: Excellent long-term UV resistance for exposed facades
Building movement: High movement capability accommodates structural flex
Longevity: Accelerated aging tests confirm long-term performance

Color Selection:

Clear/Transparent: For glass-to-glass joints, maintains visibility
White: For white aluminum frames, popular choice
Black: For dark-colored frames, contemporary high-rise designs
Gray: Most popular for aluminum curtain walls, metal panels

Storage & Handling:

Keep cartridges upright during storage
Rotate stock using FIFO principle
Once opened, use within one month
Protect from freezing temperatures

Environmental Considerations:

Ensure adequate ventilation during application and curing
Dispose of empty cartridges according to local regulations
