KD563 High-Performance Eco-Friendly Neutral Silicone Sealant_1

KEDA KD563 High-Performance Eco-Friendly Neutral Silicone Sealant

KD563 is a single-component, neutral cure, room temperature vulcanizing (RTV) silicone sealant specially designed for high-end doors, windows, and exterior wall applications. It delivers superior adhesion and weather resistance, providing long-lasting elastic waterproof sealing performance for general construction and assembly applications.

Single-component & Non-corrosive: Neutral curing formula, non-corrosive to glass and other building materials
Exceptional Durability: Excellent resistance to aging, UV rays, and water with outstanding high and low temperature performance
Superior Adhesion: Excellent bonding to most materials including glass, aluminum alloy, and other common substrates
Eco-friendly Formula: Environmentally friendly composition meeting modern green building standards
Easy Application: Ready-to-use, no mixing required

Applocation

Sealing for interior decoration, doors, and windows
Bonding and sealing of ceramics, wood, glass, and other building materials
Gap filling and joint sealing in construction projects
Weatherproofing seals for exterior applications
General-purpose multipurpose sealing applications

Package

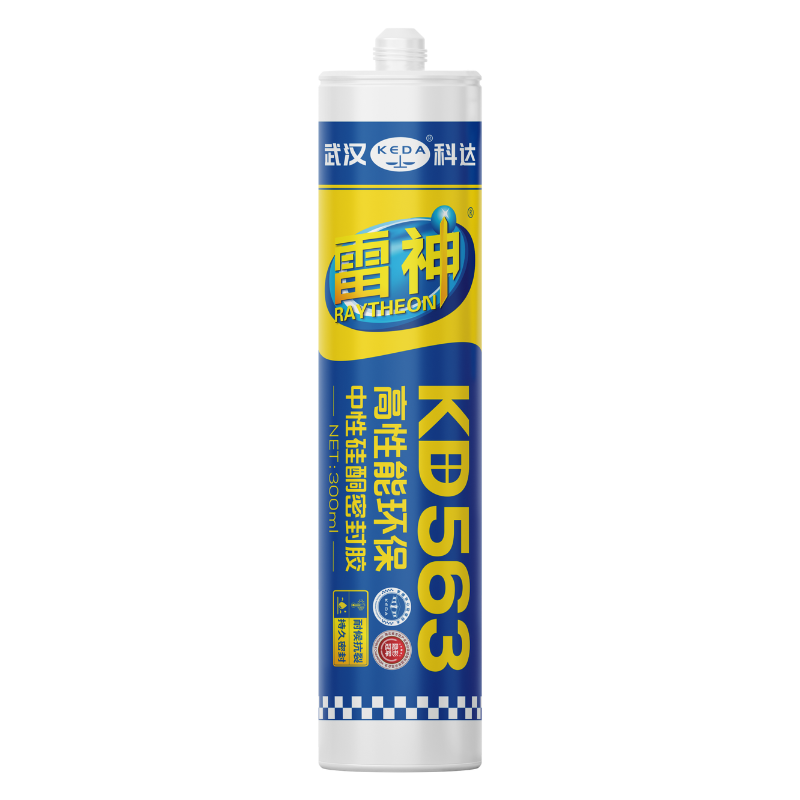

Cartridge Size: 300ml, 590ml
Available Colors: Clear/Transparent, White, Black, Gray, Customized

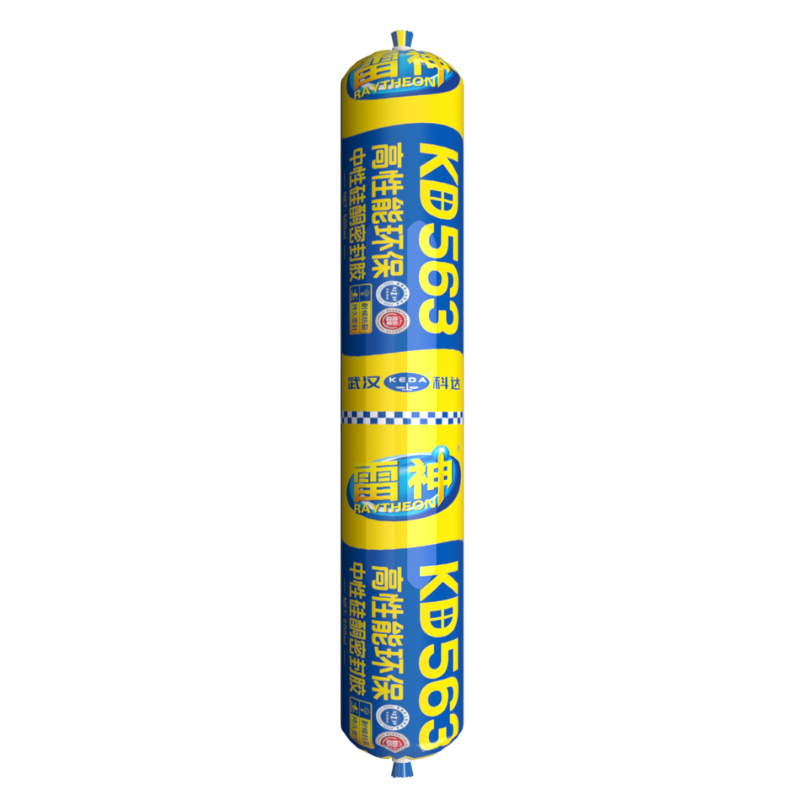

Packaging Type: Hard tube, Sausage pack/cartridge
Shelf Life: 12 months from production date (in sealed original container)
Storage Conditions: Store in cool, dry place below 27°C

Step 1: Surface Preparation

Ensure the substrate surface is clean and free from contamination, dust, oil, and loose particles
For better adhesion, surfaces should be dry

Step 2: Application

Cut the cartridge nozzle at a 45° angle to desired bead size
Load cartridge into a standard caulking gun
Apply sealant from the cartridge evenly onto the joint area

Step 3: Tooling & Finishing

Smooth and finish the sealant before skin formation occurs (within 10-15 minutes)
Use a spatula or finger (moistened with soapy water) to tool the joint
Remove masking tape immediately after tooling

Step 4: Curing

- Allow adequate curing time before exposing to stress or weather conditions
- Full cure typically achieved in 7-21 days depending on joint depth and environmental conditions

Additional information

Product Type	Single-component neutral silicone sealant
Cure System	Moisture cure (neutral)
Skin Formation Time	10-20 minutes (23°C, 50% RH)
Tack-Free Time	20-30 minutes (23°C, 50% RH)
Curing Speed	2-4 mm/24 hours
Application Temperature	+5°C to +40°C
Service Temperature	-40°C to +150°C
Movement Capability	±25%
Hardness (Shore A)	20-35
Tensile Strength	≥0.6 MPa
Elongation at Break	≥200%

Limitation

NOT for structural glazing applications
NOT suitable for materials that exude oils, plasticizers, or other substances
NOT recommended for poorly ventilated or confined spaces
NOT suitable for surfaces in direct contact with food or potable water
NOT recommended for continuous water immersion or prolonged moisture exposure
DO NOT apply when substrate temperature is below +4°C or above +50°C
NOT compatible with bituminous surfaces or materials containing copper
NOT paintable (silicone does not accept paint)

Tips

For Best Results:

Use backer rod or bond breaker tape for joints deeper than 12mm to control joint depth and ensure proper width-to-depth ratio (2:1 recommended)
For maximum adhesion, conduct adhesion tests on actual substrates before large-scale application
Avoid three-sided adhesion which can cause joint failure
Do not apply in rainy conditions or when rain is expected within 24 hours
Clean tools and uncured sealant with mineral spirits; cured sealant can only be removed mechanically
Wear gloves during application to avoid skin contact
Ensure adequate ventilation during application and curing

Storage Tips:

Keep cartridges in upright position during storage
Once opened, use cartridge within one month for best performance
Refrigeration can extend shelf life but bring to room temperature before use
